Area Monitoring System
Reactor Instrumentation & Control The neutron ﬂux monitoring system proTK™ combines long-term experience in the design and manufacturing of both detectors and signal processing electronics. These products are strictly oriented to the highest level of safety relevance and reliability and are qualiﬁed by several type tests and proven by an excellent operational experience.The system proTK™...
MediSmarts is a well-established and recognized radiation monitoring system that has been in intensive use by a large number of cyclotron facilities for more than 15 years. The modular system is comprised of three main components that interconnect within one communication network: detection units, data processing units, and dedicated control software. The software is used for data collection and...

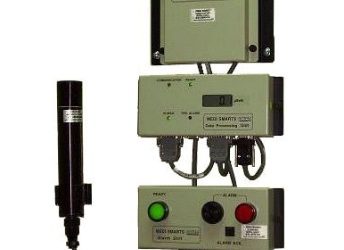

The GM-42 Integrated Area Monitoring Channel is used as part of the MediSmarts system to monitor and record radiation dose rate levels and accumulated dose in clean rooms of cyclotron sites and nuclear medical departments. The measuring range is between 0.1 µSv/h to 10 mSv/h (0.01 mR/h to 1R/h). The Integrated Area Monitoring Channel includes an internal Alarm with a...
The Flowmeter Monitoring Channel is used together with the PM-11 and GM-42 Exhaust Stack Monitoring channels. It measures the flow rate of the effluent and provides the necessary data to provide an accurate and real-time report of released effluent in units of uCu/ml and Bq/ml.
The DRM-3000 Monitor is the latest innovative instrument designed to provide the best possible user experience in Area Monitoring today. The DRM-3000 supports three external detectors and one internal detector, with automatic identification from a wide range of external detectors up to 100 meters distant from the Monitor
The DRM-1D is a CsI(Tl) detector-based, highly sensitive Area Monitor designed specifically to be used as a fixed monitor in areas where fluctuations in background levels are important. The detector is mounted internally and provides a measuring range from 0.01 mSv/h to 100 mSv/h (0.001 mR/h to 10 mR/h )
The DRM-2 is a GM tube-based, wide-range Area Monitor, including a Visual Display and Status LED. It is designed specifically to be used as a fixed monitor in varying dose rates using two very sensitive, auto-switching GM tubes. The detector is mounted internally and provides a measuring range from 0.1μSv/h to 10Sv/h (10uR/h to 1000R/h).
The DRM-2E is a GM tube-based, wide-range Area Monitor, including a Visual Display and Status LED. It is designed specifically to be used as a fixed monitor in varying dose rates using two very sensitive, auto-switching GM tubes. The detector is mounted externally and provides a measuring range from 0.1μSv/h to 10Sv/h (10uR/h to 1000R/h)
The PM-33 is a scintillation probe for the detection of gamma radiation from 0 to 50,000 cps with a sensitivity of 4,500 CPS per uSv/h (137Cs) The PM-33 can be used as an external detector to the RAM DA-2000 and when used in conjunction with the TeleMeter, become an extremely sensitive, Portable Environmental Monitor.
